High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace

Product Categories
Shaanxi KeGu New Material Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace

Material : SiC

Composition:SiC : ＞85%

Color : Black

Density : 2.5~2.6g/cm³

Max. Service Temp : 1380℃

Flexural Strength : 70-90 MPa

Size : Customized

Heat Conduction : 23.26 W/(m·℃)

Resistivity : 1000～2000 Ω·mm2/m

Tensile Strength : 39.2～49 MPa

Max. Service Temp. : 1500℃

Linear Thermal Expansion Coefficient (20-1500℃) : 5×10⁻⁶/℃

Electrical Resistivity : 1000~2000Ω·mm²/m

Model Number : Customizable

Brand Name : KEGU

Place of Origin : China

Price : 200-500 yuan/kg

Payment Terms : L/C,D/A,D/P,T/T,,

Supply Ability : 2,000 pcs/month

Packaging Details : Strong wooden box for Global shipping

Contact Now

Silicon Carbide Heating Elements for Industrial Furnaces
Silicon carbide heating elements are non-metallic high-temperature heating components manufactured from high-quality green silicon carbide. These elements are formed into blanks, siliconized at high temperatures, and recrystallized to create the most popular economical heating solution for demanding industrial applications.
High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace
Key Applications
  • High temperature industrial furnaces
  • Dental furnace heating systems
  • Refractory material processing
  • Harsh and demanding thermal environments
Technical Specifications
Outer Diameter (OD, mm) Hot Zone (HZ, mm) Cold Zone (CZ, mm) Overall Length (OL, mm) Resistance Range (ohms)
8 100-300 60-200 240-700 2.1-8.6
12 100-400 100-350 300-1100 0.8-5.8
14 100-500 150-350 400-1200 0.7-5.6
16 200-600 200-350 600-1300 0.7-4.4
18 200-800 200-400 600-1600 0.7-5.8
20 200-800 250-600 700-2000 0.6-6.0
25 200-1200 250-700 700-2600 0.4-5.0
30 300-2000 250-800 800-3600 0.4-4.0
35 400-2000 250-800 900-3600 0.5-3.6
40 500-2700 250-800 1000-4300 0.5-3.4
45 500-3000 250-750 1000-4500 0.3-3.0
50 600-2500 300-750 1200-4000 0.3-2.5
54 600-2500 300-750 1200-4000 0.3-3.0
Note: The specifications above represent a selection of our standard products. We can manufacture custom elements according to your specific requirements.
Product Details
High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace

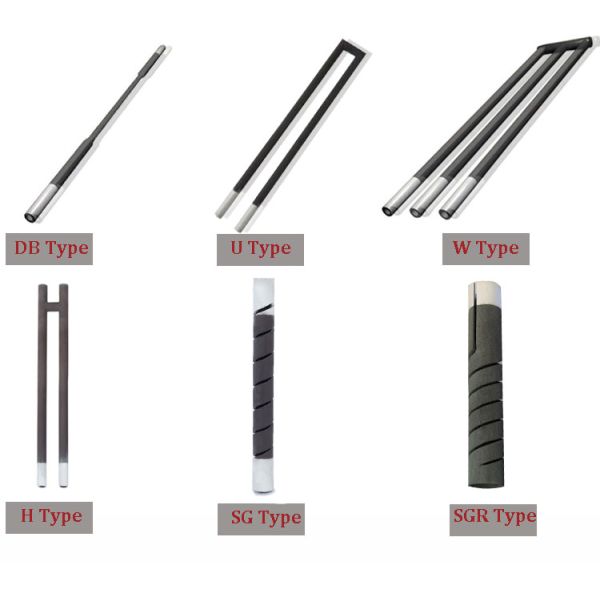

Available Types
High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace High Temperature Resistant (1500℃) Customized Size Corrosion Resistant Silicon Carbide Heating Elements Sic Heater for Industrial Furnace

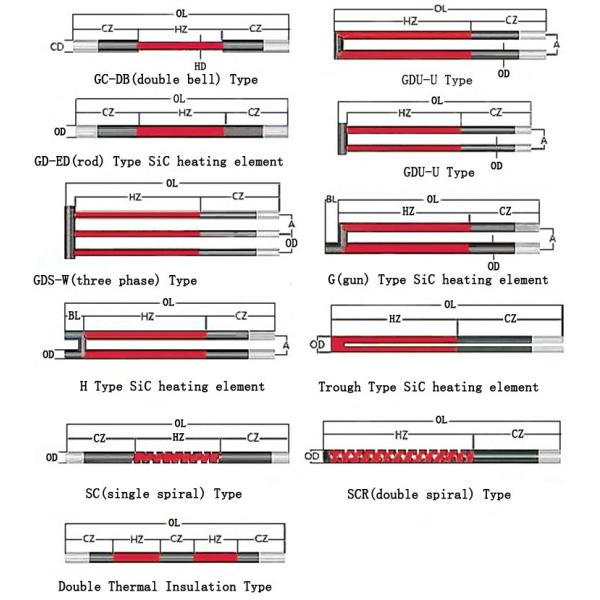

Key Dimensions: Outer Diameter (OD, mm), Hot Zone Length (HZ, mm), Cold Zone Length (CZ, mm), Overall Length (OL, mm), Shank Spacing (A, mm), Bridge (D, mm)
Our Services
Timely Response
Quick response to inquiries with multiple solution recommendations based on your specific requirements. Prompt email responses and comprehensive solutions.
Professional Services
Expert high-temperature solutions and professional construction services based on extensive industry experience. Complete documentation including detailed order updates, delivery photos, export documentation, certificates, and comprehensive after-sales support.
Strict Quality Control
Precision production scheduling with rigorous quality assurance protocols.
Shorter Delivery Time
Priority booking of earliest available shipping to guarantee timely delivery.
Frequently Asked Questions
Do you accept customization?
Yes, we operate our own factory with an excellent technical team and accept OEM services.
Do you offer samples?
Yes, we can provide samples from our available inventory.
How do you handle quality problems?
If products do not conform to customer samples or have quality issues, our company will provide appropriate compensation.
What are your payment terms?
Standard payment terms: T/T with 30%-50% deposit after order confirmation, balance payment before shipping. We also accept L/C, for smaller amounts, and PayPal.
